HardWares
32” Windows® based self-ordering Kiosk
- 32” HD commercial display screen
- 10 points PCAP touch
- Built-in printer, wide-angle scanner

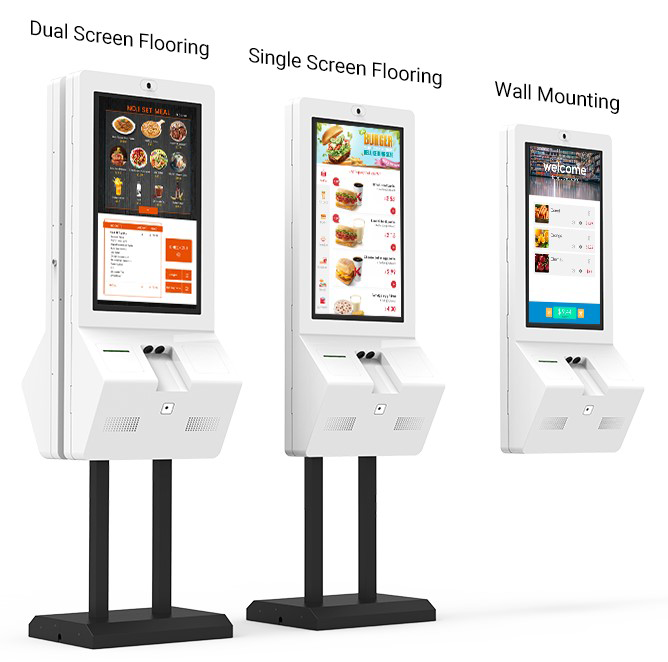

- Single/Dual screen stand, and wall mounting

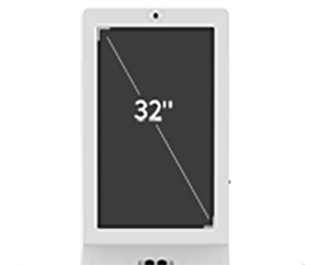

- 32” HD Touch Screen

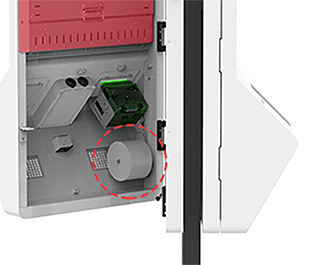

- Built-in printer

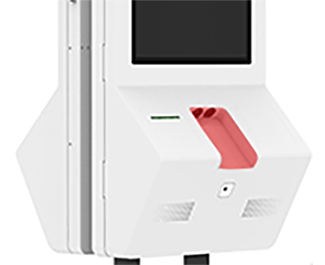

- Card Reader Space
(Card Reader is not included)

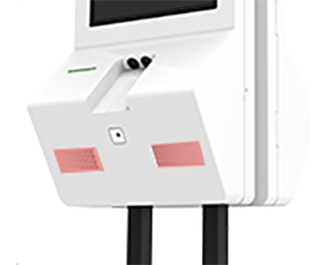

- Speaker

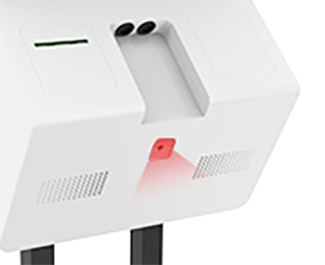

- Built-in Scanner
32” HD Image with Sensitive Capacitive Touch
32” Full HD commercial screen, with 1920 x 1080 pixel high resolution and 178-degree viewing for clear, exquisite images. exquisite images.
10-point capacitive touch supports various kinds of gestures by a point or slide touch for an easy checkout experience.
Ergonomic Design with Wide Angle Scanning
The operation area of the kiosk adopts a geometric and ergonomically design, with a height level for a comfortable user experience.
The built-in scanner supports wide-angle scanning at a larger range that can easily scan codes.
Side-opening Door with Internal Electronic Modularization
The display screen is configured with a side lock door for easy maintenance and printing paper roll change.
Internal electronic devices are modular for easy update and replacement to save time and lower replacement costs.
modular for easy update and replacement to save time and lower replacement costs.
| OS Support | WIN 10 | Android 11 |
|---|---|---|
| CPU | Intel Celeron J6412 quad-core 2.0G | RK3568 Cortex-A55 quad-core 2.0GHz |
| System Memory | 4G/8G | 2G/4G |
| Storage | 128G/256G(SSD) | 16G/32G/64G |
| Speaker | 5W*2 | 5W*2 |
| Interface | USB*4/RJ45*1 | USB*2/RJ45*1 |
| Network | Ethernet/WIFI | Ethernet/WIFI |
| Screen | Type : Projected capacitive touch (10 points) | |
| LCD | TFT-LCD | ||
|---|---|---|---|
| Screen size | 32 inches | Contrast Ratio | 1200:1 |
| Max Resolution | 1920×1080 | Response Time | 8ms |
| Aspect Ratio | 16:9 | Viewing Angle | H178° V178° |
| Brightness | 400cd/㎡ | Display Colors | 16.7M |
| Panel Life | 30000 hours | Refresh Rate | 60Hz |
| Power | Voltage : 100-240vac, 50/60hz | Power Consumption : < 120w |
|---|
| Enclosure | Material : SPCC | Surface : Powder coated |
|---|---|
| Overall Size |
Wall mount model : W540.5mm×D317mm×H1302.5mm Single screen stand model : W548mm×D515mm×H1912.5mm |
| Package (W x D x H) |
Wall mount model : 1475mm×475mm×790mm Single screen stand model : 1950mm×535mm×790mm |
| Net Weight Gross Weight |
Wall mount model : 104 lbs | Single screen stand model : 196 lbs Wall mount model : 190 lbs | Single screen stand model : 284 lbs |
| Devices |
Printer : Thermal printer with built-in cutter, paper roll 80mm Scanner : 2D, Area-imaging scanner Camera : 2 million pixels, prime lens,1920*1080@30fps Card Reader : Customized |
*Specifications are subject to change without prior notice..
